EcoBuild steel buildings
Economical and ecological buildings
We can build an economical and ecological building for you within six weeks, because our halls are all built with pre-fabricated elements. With distribution through our international network we can ensure that schedules are met and that projects’ specified quality standards are strictly adhered to.
Our turnkey concept
for steel buildings is quick and easy: whether you need a production building, room for storage or any other business buildings.
- In more than 50 countries
- Buildings for any usage
- Turnkey concept
- Quick and easy
EcoBuild halls are built from standardized components to meet your space requirements.
Two different types are available: Type C is based on C profiles and Type T is based on a truss system. Both consist of cold formed structural members, roof and wall panels.

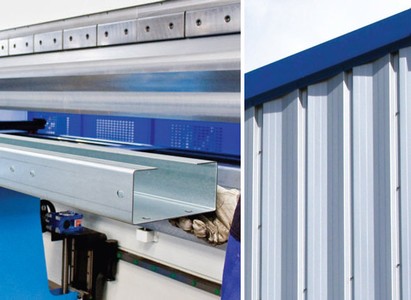

The frame system consists of galvanized cold formed structural components, produced on automated rollforming and punching lines.
- Simple and fast installation
- In one day the frames are ready
- Full installation of purlins, roof, walls and accessories
- Pre-defined erection sequence
- No cutting, drilling or welding on site
- High quality steel building
Efficiency & Quality
- Produced according to QMS certified to ISO 9001
- Proofed regularly by Bureau Veritas
- High quality standard certified by CE marking
- Compliance with the EN1090-2 standard
- Accordance with EUROCODE

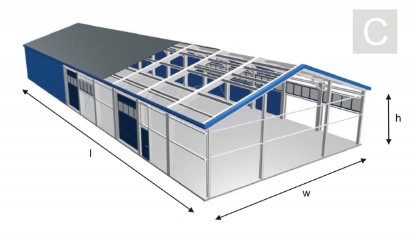

Building type C
| Heigth (h) | Width (w) | Length (l) | Roof shape | Roof slope | |
| XS | 3m/4m | 10m | 10m-30m | single pitch roof | 10 % |
| S1 | 4m/5m | 12m | 10m-50m | single pitch roof | 10 % |
| S2 | 4m/5m | 12m | 10m-60m | double pitch roof | 10%/33% |
| M1 | 4m/5m/6m | 15m | 10m-80m | double pitch roof | 10%/33% |

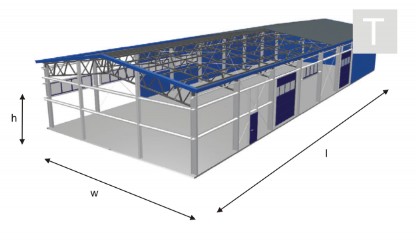

Building type T
| Heigth (h) | Width (w) | Length (l) | Roof shape | Roof slope | |
| M2 | 4m/5m/6m/7m | 15m | 20m-80m | double pitcg roof | 10 % |
| L | 4m/5m/6m/7m | 18m | 20m-80m | double pitcg roof | 10 % |
| XL | 4m/5m/6m/7m | 21m | 30m-100m | double pitcg roof | 10 % |
| XXL | 4m/5m/6m/7m | 24m | 30m-100m | double pitcg roof | 10 % |

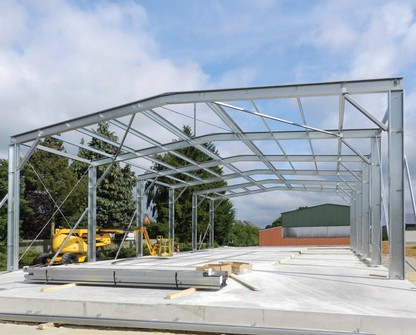

Steel framesThe frame system consists mainly of galvanized cold formed structural components, produced on automated rollforming and punching lines.
- Simple and fast installation
- In one day the frames are ready
- Full installation of purlins, roof, walls and accessories
- Pre-defined erection sequence
- No cutting, drilling or welding on site
- High quality steel building
Each building comes with a electronic drawing package containing information about all the components and erection.
Roof & Wall
EcoBuild buildings are delivered both insulated as well as uninsulated. We offer an appealing range of sandwich panels providing high thermal insulation, as well as standardized profiles for more traditional built up systems, in a range of standard colors.
Accessories
Rain water system Personal doors Industrial doors Windows Translucent panels Other openingsEfficiency & Quality
Produced according to QMS certified to ISO 9001 Proofed regularly by Bureau VeritasHigh quality standard certified by CE markingCompliance with the EN1090-2 standard Accordance with EUROCODEI
